Group Well Test History Screen

Objective:

Define objective Example: Show locations and options in the history graph page.

Rights Needed:

☐Admin ☐ Admin Lite ☐Well Admin ☐Well Control

☐Well Config ☐Well Config Lite ☒Read Only

Versions:

XSPOC: 3.1, 3.2

Purpose:

The Group Well Test History screen allows users to manually enter production data into XSPOC and displays well test data automatically imported to XSPOC via data integration imports. This data is used by XSPOC to calculate Pump Efficiency on Rod Pump Controllers and Pump Performance on ESPs. This data is also viewable in History Graph.

Instruction:

1. Open the XPOC Client
2. From the navigation panel locate and select the Group Tab

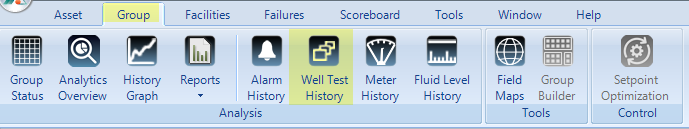

3. Click Group Tab > Well Test History Icon

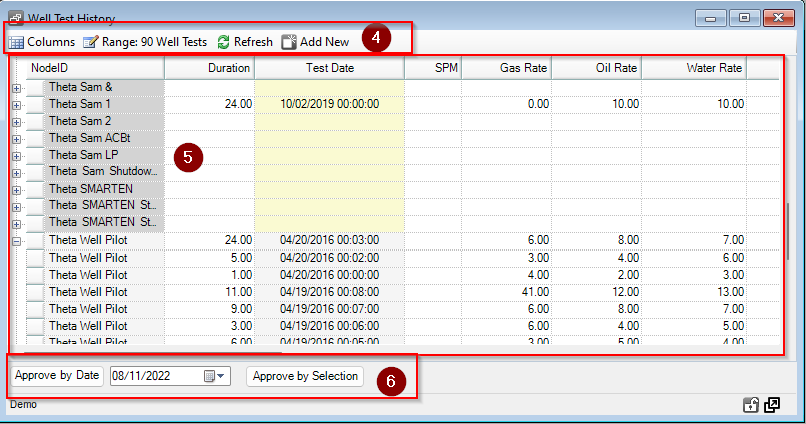

4. Along the top of the screen:
   1. Columns – allows the user to select what columns you want to see data for.
   2. Range – allows the user to select the range of well test that will display below.
   3. Refresh – will update the data in the window.
   4. Add New – allows the user to manually add new well tests.
5. The data is displayed in the center of the screen.
   1. Click the plus symbol by an Asset to display the well tests for that asset
6. Along the bottom of the screen:
   1. Approved by Date – allows the user to approve the well test highlighted above.
   2. Approve by Selection – allows the user to approve all the well tests that have the Approved checkbox marked in the center window.
   3. The Group Name is displayed
7. Well Test must be approved to be used and displayed in other XSPOC screens.
8. On the bottom right there are two window control icons.
   1. The lock icon allows the user to lock the screen,
   2. The arrow icon allows the use to float the window and move it to other screens or areas of the same computer screen.
