Reports Screen

Objective:

Explain what a user is seeing on the Reports Screen

Rights Needed:

☐Admin ☐ Admin Lite ☐Well Admin ☐Well Control

☐Well Config ☐Well Config Lite ☒Read Only

Versions:

XSPOC: 3.1, 3.2

Purpose:

Designed to give the user access to several different reports. Selecting one of these reports will open a print preview of the report data.

Instruction:

1. Open XPOC Client
2. From the navigation panel locate and select the asset

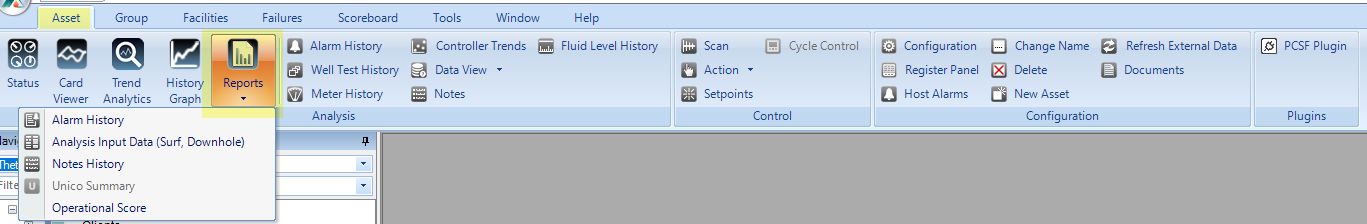

3. Click Asset Tab > Reports Icon
4. Selecting Reports provides a drop-down pick list of some pre-configured reports in XSPOC
   1. Alarm History
   2. Analysis Input Data (Surf, Downhole)
   3. Notes History
   4. Unico Summary Report – if the user has selected an asset with a Unico Controller.
   5. Operational Score
5. On the bottom right there are two window control icons.
   1. The lock icon allows the user to lock the screen,
   2. The arrow icon allows the use to float the window and move it to other screens or areas of the same computer screen.
