Facility Status Screen

Objective:

Explain what a user is seeing on the Facility Status Screen.

Rights Needed:

☐Admin ☐ Admin Lite ☐Well Admin ☐Well Control

☐Well Config ☐Well Config Lite ☒Read Only

Versions:

XSPOC: 3.1, 3.2

Purpose:

Designed to give the user access to facility tag data for the selected well.

Instruction:

1. Open XPOC Client

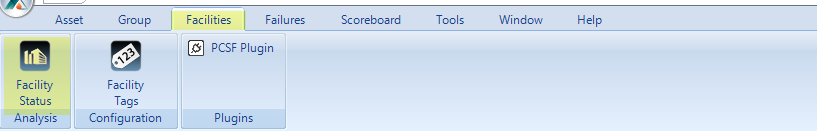

2. From the navigation panel locate and select the Facilities Icon
3. Click Facilities>Facility Status

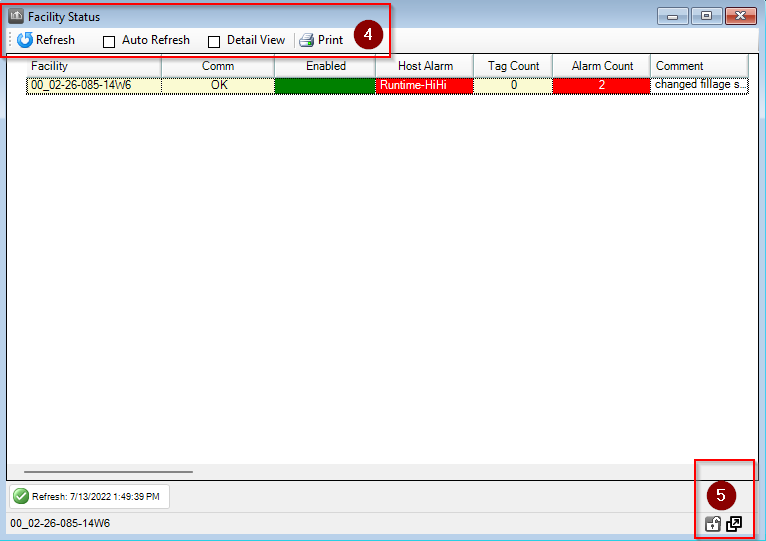

4. The Facility Status Screen opens displaying:
   1. A tool bar at the top consisting of:
      1. Refresh
      2. Auto Refresh
      3. Detail View
      4. Print
   2. The main screen displays all the facility tags for the asset selected in the navigation panel to the left
5. On the bottom right there are two window control icons.
   1. The lock icon allows the user to lock the screen.
   2. The arrow icon allows the use to float the window and move it to other screens or areas of the same computer screen.
