Facility Tags

Objective:

Explain what a user is seeing on the Facility Tags Screen.

Rights Needed:

☐Admin ☐ Admin Lite ☐Well Admin ☐Well Control

☐Well Config ☐Well Config Lite ☒Read Only

Versions:

XSPOC: 3.1, 3.2

Purpose:

Designed to give the user access to view facility tags for the select well.

Instruction:

1. Open XPOC Client

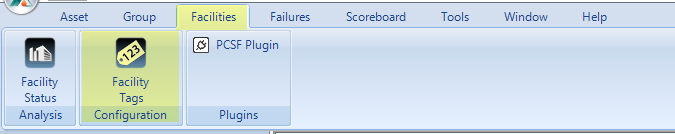

2. From the navigation panel locate and select the Facilities Icon
3. Click Facilities>Facility Tags Icon

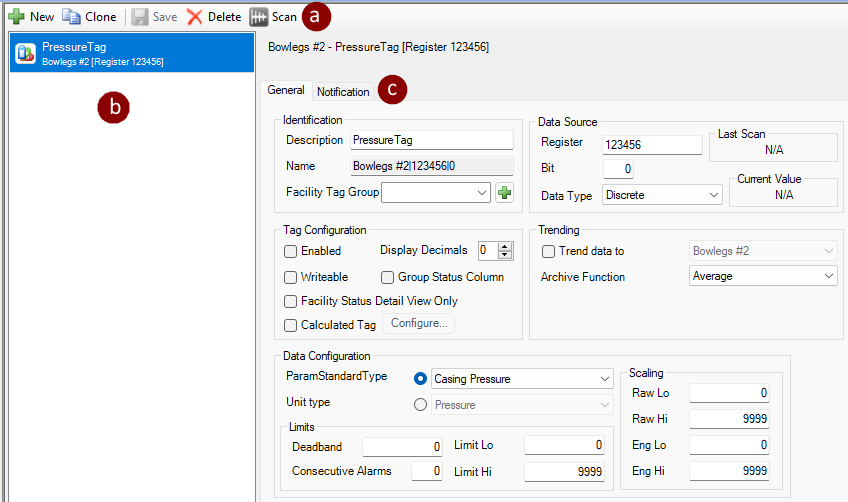

4. The screen displays and has four sections:
   1. The tool bar at the top contains these icons
      1. New
      2. Clone
      3. Save
      4. Delete
      5. Scan
   2. The panel on the left contains all the facility tags created on the asset
   3. The section to the right middle contains two tabs:
      1. General Tab – allows the user to configure the facility tag
      2. Notification Tab – allows the user to configure notifications and actions that can be initiated by the tag’s value for both groups and for individual wells.

1. On the bottom right there are two window control icons.
   1. The lock icon allows the user to lock the screen.
   2. The arrow icon allows the use to float the window and move it to other screens or areas of the same computer screen.
