Fluid Level History Screen

Objective:

Explain what a user is seeing on the Fluid Level History Screen

Rights Needed:

☐Admin ☐ Admin Lite ☐Well Admin ☐Well Control

☐Well Config ☐Well Config Lite ☒Read Only

Versions:

XSPOC: 3.1, 3.2

Purpose:

Designed to give the user a view of recorded fluid levels for the well selected.

Instruction:

1. Open XPOC Client
2. From the navigation panel locate and select the asset

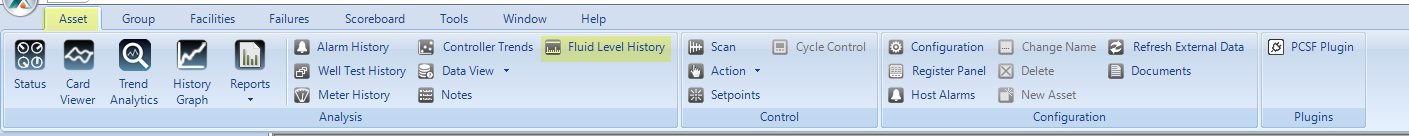

3. Click Asset Tab > Fluid Level History Icon

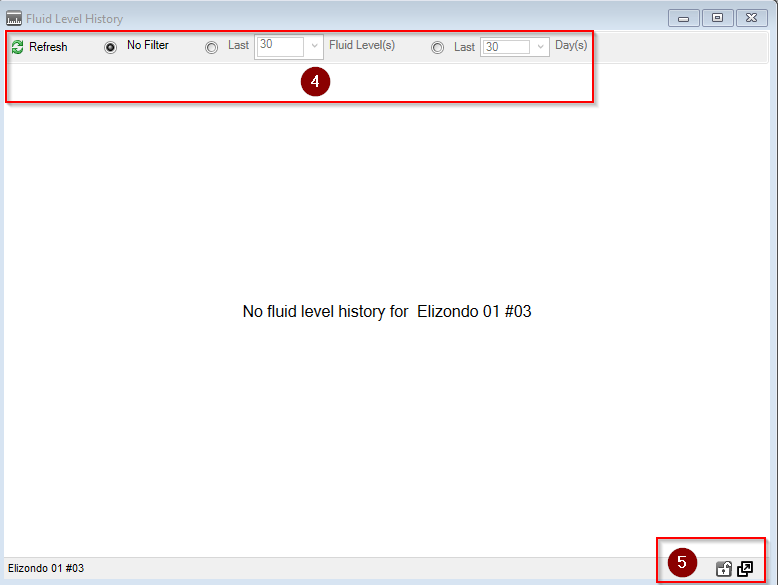

   1. Refresh will update the data on the screen.
   2. There is a Filter option that can specify what the user wants to see.
   3. The data is presented By Asset Name (NodeID) and Date.
   4. Fluid Levels are displayed for the following:
      1. Fluid Level from Surface
      2. Fluid Above Pump
   5. If a comment was added when the fluid level was entered it will be displayed.
4. Each column header has a drop-down filter that can be used to display the data in various subsets.
5. On the bottom right there are two window control icons.
   1. The lock icon allows the user to lock the screen,
   2. The arrow icon allows the use to float the window and move it to other screens or areas of the same computer screen.
