Alarm History Screen

Objective:

Explain what a user is seeing on the Alarm History Screen.

Rights Needed:

☐Admin ☐ Admin Lite ☐Well Admin ☐Well Control

☐Well Config ☐Well Config Lite ☒Read Only

Versions:

XSPOC: 3.1, 3.2

Purpose:

Designed to give the user a record of the various types of alarms for the selected well.

Instruction:

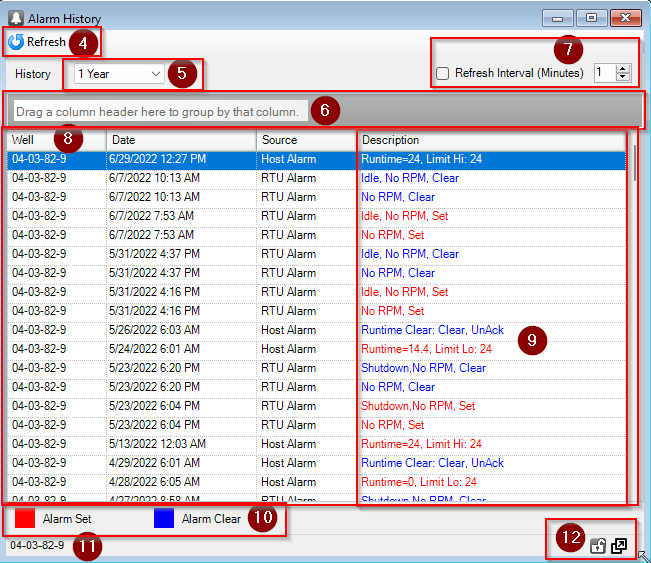

1. Open XPOC Client
2. From the navigation panel locate and select the asset

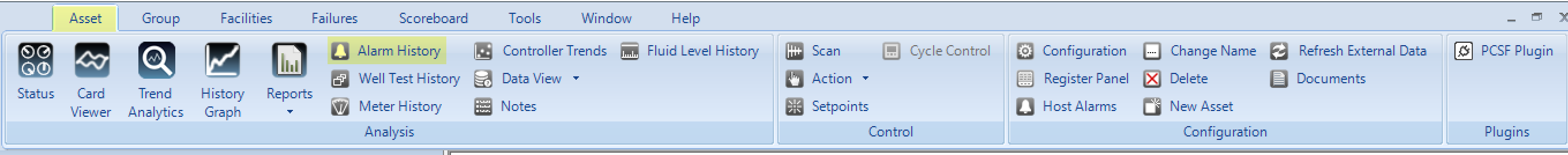

3. Click Asset Tab > Alarm History icon
4. Refresh updates the Screen
5. History drop-down pick list allows the user to select 1 Hour, 1 Week, 1Day, or 1Year of alarm history to view.
6. The User can Drag a column header to group by a specific column.
7. Check the Refresh interval (minutes) box and enter the number of minutes desired and the screen will automatically refresh at that interval.
8. The list of alarms is visible by Week, Date, Source of the Alarm and Description.
9. The Description column records the type of alarm along with when it sets and clears.
10. The legend at the bottom displays that an Alarm Set appears in red and that an Alarm Clear displays in blue.
11. Status Button
12. On the bottom right there are two window control icons.
    1. The lock icon allows the user to lock the screen.
    2. The arrow icon allows the use to float the window and move it to other screens or areas of the same computer screen.
