Cycle Control Screen

Objective:

Explain what a user is seeing on the Cycle Control Screen.

Rights Needed:

☐Admin ☐ Admin Lite ☐Well Admin ☐Well Control

☐Well Config ☐Well Config Lite ☒Read Only

Versions:

XSPOC: 3.1, 3.2

Purpose:

The Cycle Control Screen allows the user to see current values, current configuration, and current performance data associated with plunger lift and/or plunger assisted gas lift wells.

Instruction:

1. Open XPOC Client
2. From the navigation panel locate and select the Cycle Control Icon

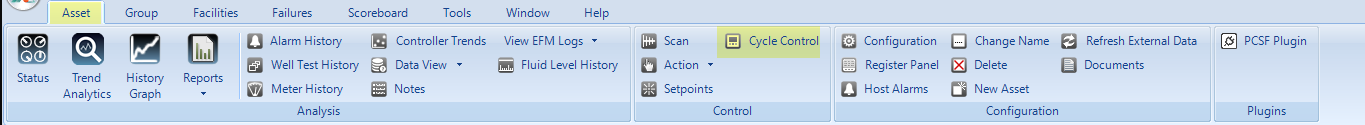

3. Click Asset>Cycle Control

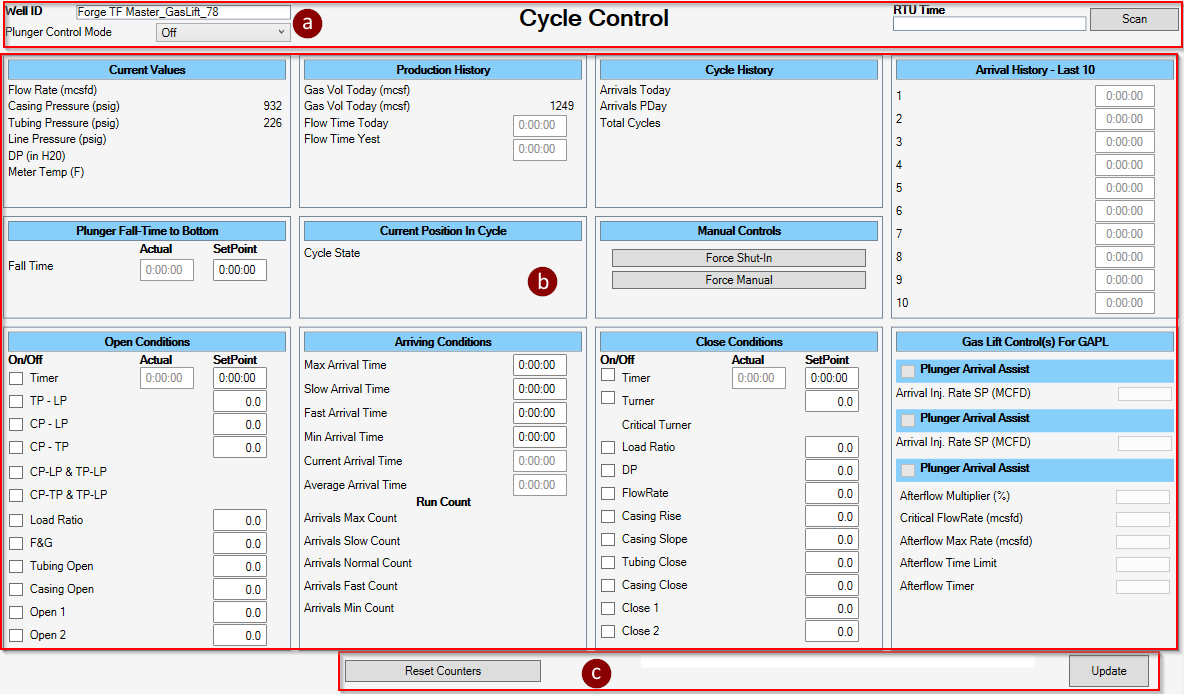

4. The Cycle Control screen opens and contains the following:
   1. At the top of the screen
      1. WellID
      2. Plunger Control Mode
      3. RTU Time
      4. Scan button
   2. In the center of the screen
      1. Current Values
      2. Historical Values
      3. Manual Controls
      4. Current Setpoint Configuration Settings
      5. Gas Lift Controls for GAPL wells
   3. At the bottom of the screen
      1. Reset Counter button
      2. Update button – used to write changes out to the controller
5. On the bottom right there are two window control icons.
   1. The lock icon allows the user to lock the screen,
   2. The arrow icon allows the use to float the window and move it to other screens or areas of the same computer screen.
