Asset Configuration Screen

Objective:

Explain what a user is seeing on the Asset Configuration Screen.

Rights Needed:

☐Admin ☐ Admin Lite ☐Well Admin ☐Well Control

☐Well Config ☐Well Config Lite ☒Read Only

Versions:

XSPOC: 3.1, 3.2

Purpose:

The Asset Configuration Screen displays well data for the selected well. This screen allows you to enter and it allows you to make changes to a Well’s Controller Information, Surface Equipment, Downhole Equipment, Measurements, Analysis Options, IPR, Cameras, and Setpoint Optimization.

Instruction:

1. Open XPOC Client

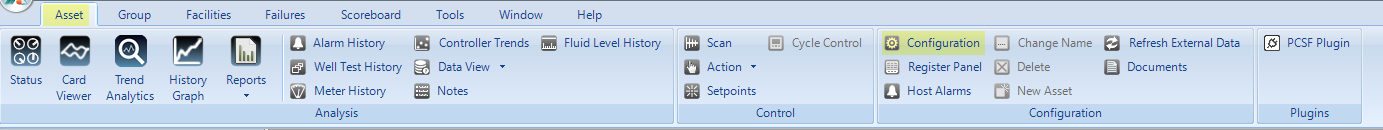

2. From the navigation panel locate and select the Asset Tab
3. Click Asset>Configuration

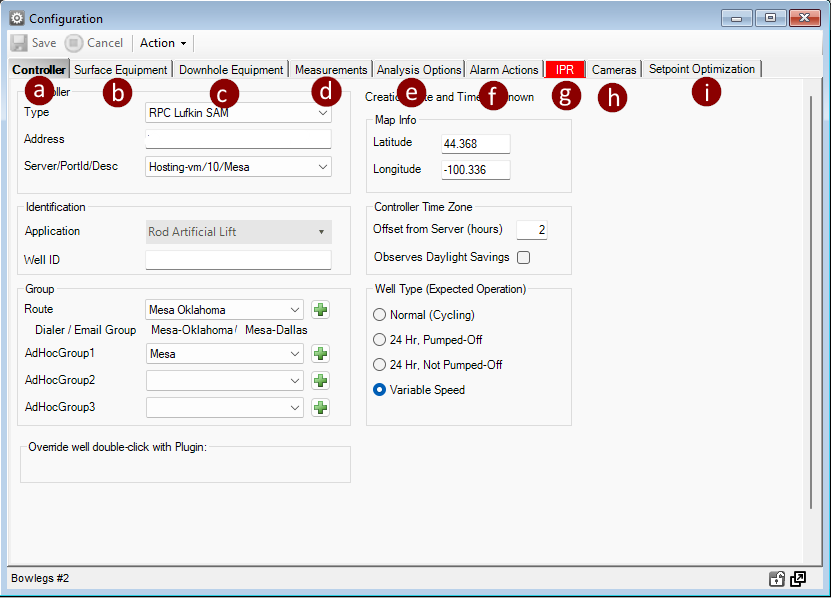

4. The Configuration screen opens, and it contains the following:
   1. Controller Tab
   2. Surface Equipment Tab
   3. Downhole Equipment Tab
      1. Rods
      2. Casing
      3. Tubing
      4. Perforations
      5. Deviations
   4. Measurements Tab
   5. Analysis Options Tab
   6. Alarm Actions Tab
   7. IPR Tab
   8. Cameras Tab
   9. Setpoint Optimization Tab

1. On the bottom right there are two window control icons.
   1. The lock icon allows the user to lock the screen,
   2. The arrow icon allows the use to float the window and move it to other screens or areas of the same computer screen.
