Setpoint Optimization Screen

Objective:

Explain what a user is seeing on the Setpoint Optimization Screen.

Rights Needed:

☐Admin ☐ Admin Lite ☐Well Admin ☒Well Control

☐Well Config ☐Well Config Lite ☐Read Only

Versions:

XSPOC: 3.1, 3.2

Purpose:

This screen allows the user to view, configure and implement XSPOC Setpoint Optimization recommendations.

Instruction:

1. Open the XPOC Client
2. From the navigation panel locate and select the Group Tab

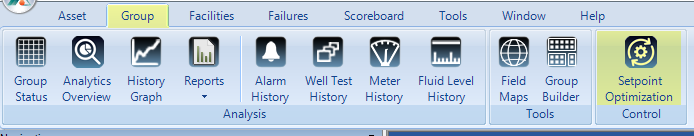

3. Click Group Tab > Setpoint Optimization Icon

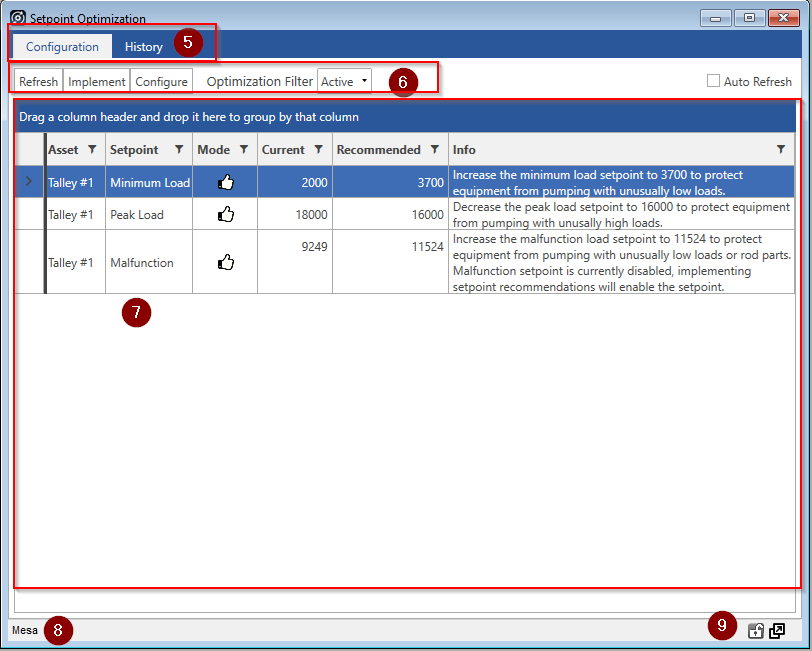

4. The screen launches and displays the following.
5. There are two tabs at the top of the screen.
   1. Configuration
   2. History
6. The tool bar below the tabs contains:
   1. Refresh – refreshes the data displayed on the screen
   2. Implement – allows the user to implement the recommendations for the well or wells selected
   3. Configure – allows the user to configure and the apply the configuration to selected wells or to the entire group
      1. Autonomous
      2. Recommended
      3. None
      4. Apply To Selected
      5. Apply To Group
   4. Optimization Filter – displays the selected optimizations
      1. Active
      2. All
      3. Autonomous
      4. Recommendations
      5. Blocked
   5. Auto Refresh – will update the data every minute if checked
7. The setpoint optimization recommendations are displayed in the center of the screen
8. The selected Group Name is displayed at the bottom left of the screen.
9. On the bottom right there are two window control icons.
   1. The lock icon allows the user to lock the screen,
   2. The arrow icon allows the use to float the window and move it to other screens or areas of the same computer screen.
