Server Log Files Screen

Objective:

To explain the Server Log File screen in XSPOC.

Rights Needed:

☒Admin ☒ Admin Lite ☐Well Admin ☐Well Control

☐Well Config ☐Well Config Lite ☐Read Only

Versions:

XSPOC: 3.1, 3.2

Purpose:

To familiarize the user with the Server Log File feature in XSPOC.

Instruction:

1. Open XPOC Client

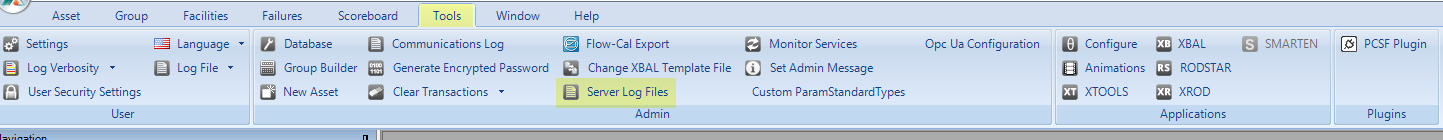

2. From the navigation panel locate and select the Tools Tab
3. Click Tools Tab > Server Log File Icon

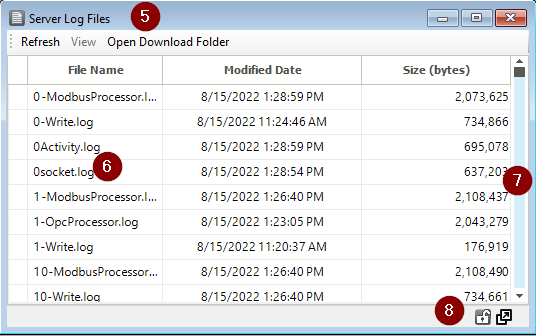

4. The screen open displaying the log files that are on the XSPCO server.
5. At the top is a tool bar with the following:
   1. Refresh
   2. View
   3. Open Download Folder
6. The files are listed in the center of the screen. Click on a file to open it.
7. There is a scroll bar on the right.
8. On the bottom right there are two window control icons.
   1. The lock icon allows the user to lock the screen.
   2. The arrow icon allows the use to float the window and move it to other screens or areas of the same computer screen.
