Trend Analytics Screen

Trend Analytics Screen

Objective:

Explain what a user is seeing on the Trends Analytics Screen.

Rights Needed:

☐Admin ☐ Admin Lite ☐Well Admin ☐Well Control

☐Well Config ☐Well Config Lite ☒Read Only

Versions:

XSPOC: 3.1, 3.2

Purpose:

Designed to give the user access to default trend data that XSPOC tracks and uses.

Instruction:

1. Open XPOC Client
2. From the navigation panel locate and select the asset

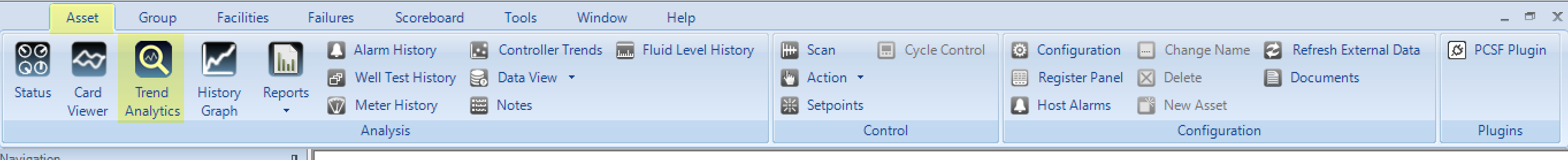

3. Click Asset Tab > Trend Analytics Icon

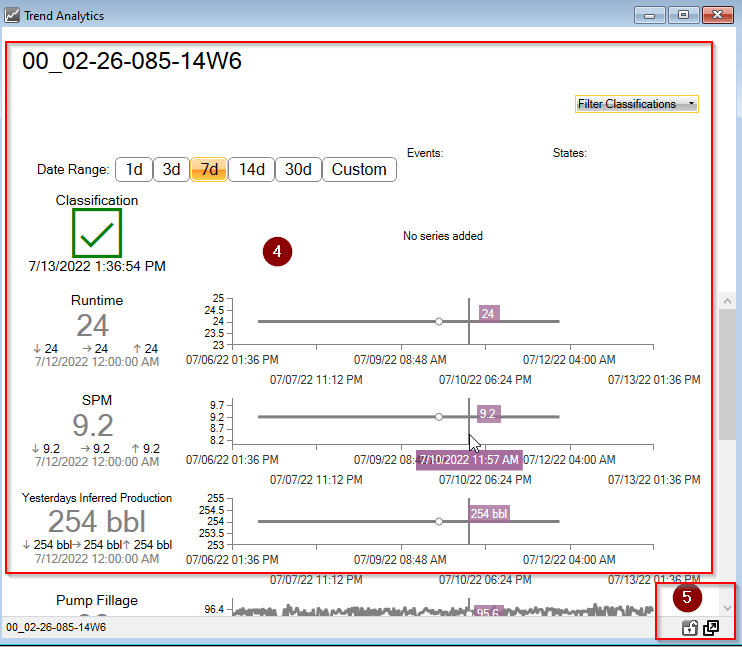

4. On the Trend Analytics Screen is displayed:
   1. Date Range – allows the user to select the desired date range days, or a custom date range.
   2. Events – displays XSPOC detected events in the operation of the asset.
   3. States – displays states of the asset detected in XSPOC.
   4. Filter Classifications – a drop-down pick list that will list any classifications recognized in XSPOC.
   5. Classification- displays the status of the classification.
   6. The graph displays the trend data used in XSPOC trend analysis.
5. On the bottom right there are two window control icons.
   1. The lock icon allows the user to lock the screen,
   2. The arrow icon allows the use to float the window and move it to other screens or areas of the same computer screen.
