User Security Settings Screen

Objective:

To explain what the user sees on the User Security Settings Screen.

Rights Needed:

☐Admin ☐ Admin Lite ☐Well Admin ☐Well Control

☐Well Config ☐Well Config Lite ☒Read Only

Versions:

XSPOC: 3.1, 3.2

Purpose:

To familiarize XSPOC users with the User Security Screen

Instruction:

1. Open the XPOC Client

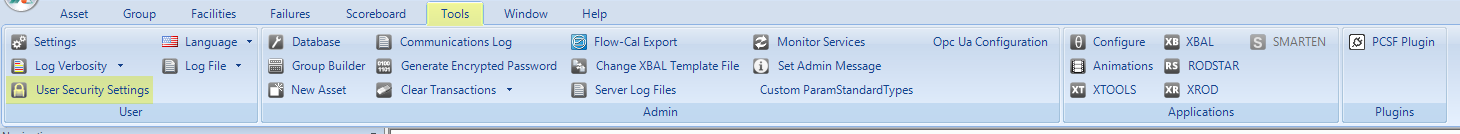

2. From the navigation panel locate and select the Tools Tab
3. Click Tools Tab > User Security Settings Icon

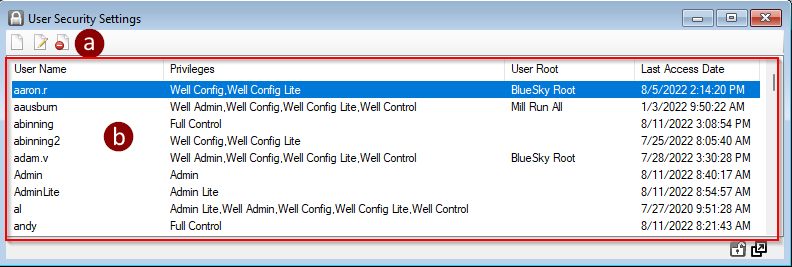

4. The User Security Screen launches and displays the following.
   1. New, Edit, Delete buttons
   2. User Details

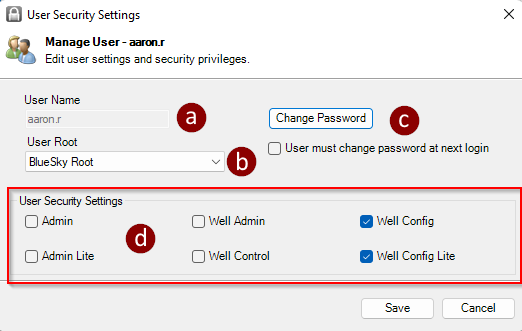

1. User Security Settings Box:
   1. User Name
   2. User Root
   3. Change Password – allows User to set a new password
   4. User Security Settings – check boxes for privileges in XSPOC
      1. Admin
      2. Admin Lite
      3. Well Admin
      4. Well Control
      5. Well Config
      6. Well Config Lite
      7. Save and cancel Buttons
