Opc Ua Configuration Screen

Objective:

Explain what a user is seeing on the Opc Ua Configuration Screen.

Rights Needed:

☒Admin ☐ Admin Lite ☐Well Admin ☐Well Control

☐Well Config ☐Well Config Lite ☐Read Only

Versions:

XSPOC: 3.1, 3.2

Purpose:

Familiarize the user with the Opc Ua Configuration Screen.

Instruction:

1. Open XPOC Client
2. From the navigation panel locate and select the Tools Tab

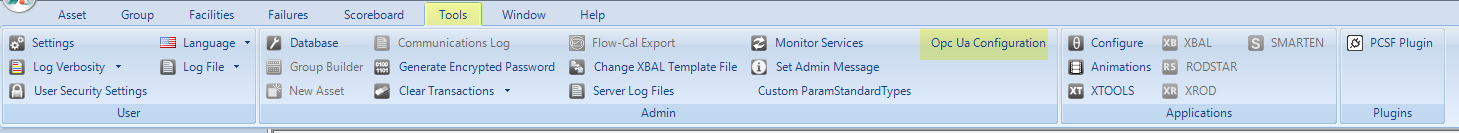

3. Click Tools Tab > Opc Ua Configuration Icon

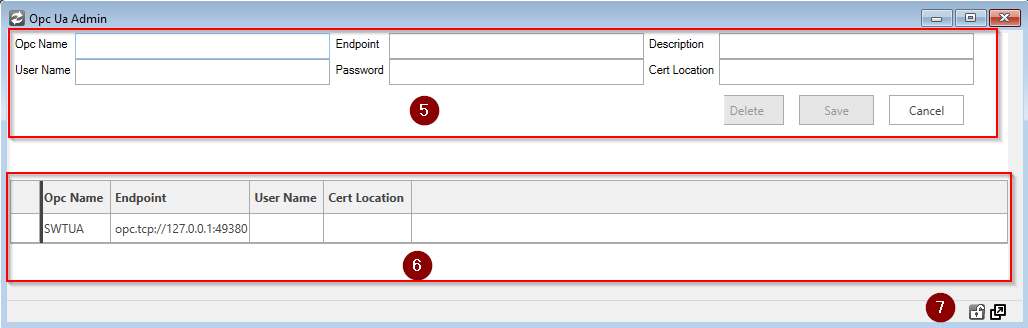

4. The Opc Ua configuration screen opens and contains the following.
5. The top section contains data entry boxes:
   1. Opc Name
   2. User Name
   3. Endpoint
   4. Password
   5. Description
   6. Cert Location
   7. Delete, Save, Cancel buttons
6. The center of the screen displays and Opc servers that have been configured
7. On the bottom right there are two window control icons.
   1. The lock icon allows the user to lock the screen.
   2. The arrow icon allows the use to float the window and move it to other screens or areas of the same computer screen.
