Log Verbosity

Objective:

To Explain the XSPOC Client Log Verbosity Options.

Rights Needed:

☐Admin ☐ Admin Lite ☐Well Admin ☐Well Control

☐Well Config ☐Well Config Lite ☒Read Only

Versions:

XSPOC: 3.1, 3.2

Purpose:

Familiarize XSPOC users with the Tools>Log Verbosity options. The XSPOC client maintains a log file in a temporary file location that tracks failures and warnings while using the client. The client is capable of recording logs at 5 levels of verbosity.

Instruction:

1. Open the XPOC Client

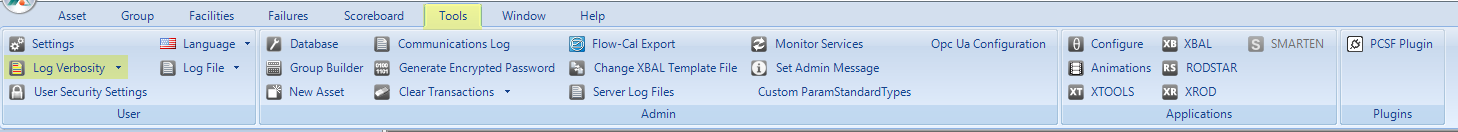

2. From the navigation panel locate and select the Tools Tab
3. Click Tools Tab > Log Verbosity Icon
4. The Log Verbosity options are:
   1. Error
   2. Warning
   3. Information
   4. Debug
   5. Trace

1. The log verbosity is reset to Error by default every time the client opens. The user can change the verbosity by clicking the dropdown and selecting one of the lower-level options. The options get progressively more verbose (record more data) as you go down the list of options. Setting verbosity to Warn will record all Warnings AND all Errors in the software. Info will record all Info, Warnings and Errors. After changing the verbosity value, the user can step through some actions in the client and then view the log by clicking View in the Log File dropdown.
